產品中心

當前位置: 首頁 > 產品中心 > 硬度計系列 > 洛氏硬度計 > HRM-45DT電動表面洛氏硬度計

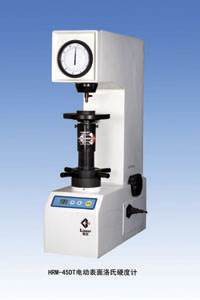

HRM-45DT電動表面洛氏硬度計

產品名稱:HRM-45DT電動表面洛氏硬度計
產品型號:HRM-45DT
產品產地:上海
HRM-45DT型電動表面洛氏硬度計是一種通過電動加載、保荷卸荷的半自動測試金屬材料表面硬度的洛氏硬度計。具有操作更簡便、壓痕微小、精度高等特點。
適用范圍
表面淬火鋼,銅、鋁合金薄板,帶鋼,硬質合金鋼,鍍鋅,鍍鉻,鍍錫,材料表面熱處理和化學表面處理的各種金屬材料。
HRM-45DT Motorized Superficial Rockwell Hardness Tester adopts motorized testing method. Its testing force can be loaded, kept and unloaded automatically. Avoid man-made error and easy to use. The characteristics of the instrument is light testing force and therefore, leaving very small indentation.
Usage Range:
Surface hardened steel, copper, aluminum alloy thin sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface hardened treating and chemical treating materials, etc.
技術數據(Technical Specifications)
表面洛氏標尺
(Superficial Rockwell Scales)
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
初試驗力(Initial Testing Force)
3Kg(29.42N)
試驗力(All Testing Force)
15Kg(147.1N),30Kg(294.2N),45Kg(441.3N)
硬度讀取
(Indication of Hardness Value)
表盤式(Dial )
保菏時間(Duration Time)
2 ~ 60S
試件******高度
Max. Height of Specimen
170mm
儀器尺寸(長X寬X高)
(Overall Dimension:LXWXH)
520X240X700MM
儀器重量(Net Weight)
80 Kg
電源( Power Supply)
AC220V + 5%, 50~60 Hz
執行標準 (Carried Standard)
GB/T230.2 國家標準、JJG112檢定規程
GB/T230.2 Chinese Standard and JJG112 Testing Rule
標準配件、附件
(Standard Accessories)
金剛石洛氏壓頭,直徑1.5875mm硬質合金球壓頭,大平試抬、中平試臺、V型試臺,硬度塊,電源線等
Diamond Rockwell Indenter, Diameter 1.5875mm Hard Alloy Steel Ball Indenter, Large Testing Table , Medium Testing Table and V-shaped Testing Table,HR30N and HR30T Hardness Blocks , Power Cable, etc.
