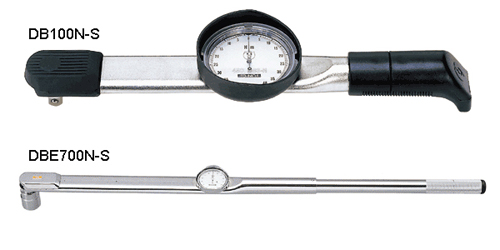

| 產品名稱：日本東日DB/DBE/DBR系列扭力扳手扭矩扳手 |
| 產品型號：日本東日DBR系列 |
| 產品產地：日本東日 |
 |
|
Model |
Torque Range |
Hand force at Max.Torque |
Effective Lgth. |
Overall Lgth. |
Square Drive |
Weight approx. | ||||||||||||
|
Min.-Max. |
Graduation | |||||||||||||||||
|
S.I. |
Metric |
American |
S.I. |
Metric |
American |
S.I. |
Metric |
American |
N |
lb. |
mm |
in. |
mm |
in. |
mm |
in. |
kg |
lb. |
|
DB1.5N-S |
15DB3-S |
DB13I-2AS |
N.m 0.2-1.5 |
kgf.cm 2-15 |
in.lbs 0-13 |
N.m 0.02 |
kgf.cm 0.2 |
in.lbs 0.2 |
8.3 |
1 27/32 |
180 |
7 3/32 |
230 |
8 7/8 |
6.3 |
1/4 |
0.4 |
21/32 |
|
DB3N-S |
30DB3-S |
DB26I-2AS |
0.3-3 |
3-30 |
0-26 |
0.05 |
0.5 |
0.5 |
16.7 |
3 41/64 | ||||||||
|
DB6N-S |
60DB3-S |
DB40I-2AS |
0.6-6 |
6-60 |
0-40 |
0.1 |
1 |
0.5 |
33.3 |
5 41/64 |
9 1/16 |
7/8 | ||||||
|
DB12N-S |
120DB3-S |
DB75I-2AS |
1-12 |
10-120 |
0-75 |
0.2 |
2 |
1 |
66.7 |
10 37/64 | ||||||||
|
DB25N-S |
230DB3-S |
DB150I-3AS |
3-25 |
30-230 |
0-150 |
0.5 |
5 |
2 |
125 |
19 3/64 |
200 |
7 7/8 |
245 |
9 21/32 |
9.53 |
3/8 | ||
|
DB50N-S |
450DB3-S |
DB300I-3AS |
5-50 |
50-450 |
0-300 |
5 |
208 |
31 25/32 |
240 |
9 7/16 |
320 |
12 19/32 |
0.6 |
1 11/32 | ||||
|
- |
- |
DB600I-3AS |
- |
- |
0-600 |
- |
- |
10 |
- |
49 15/64 |
- |
12 3/16 |
- |
15 3/4 |
- |
- |
||
|
DB100N-S |
900DB3-S |
DB600I-4AS |
10-100 |
100-900 |
1 |
10 |
323 |
49 15/64 |
310 |
400 |
12.7 |
1/2 |
0.7 |
1 9/16 | ||||
|
- |
- |
DB25F-3AS |
- |
- |
ft.lbs 0-25 |
- |
- |
ft.lbs 0.5 |
- |
31 25/32 |
- |
9 7/16 |
- |
12 19/32 |
- |
3/8 |
- |
1 11/32 |
|
DB50F-3AS |
0-50 |
49 15/64 |
12 3/16 |
15 3/4 |
1 9/16 | |||||||||||||
|
DB50F-4AS |
1/2 | |||||||||||||||||
|
DB200N-S |
1800DB3-S |
DB100F-4AS |
20-200 |
200-1800 |
0-100 |
2 |
20 |
1 |
488 |
74 13/32 |
410 |
16 1/8 |
500 |
19 11/16 |
12.7 |
1 |
1 7/32 | |
|
DB280N-S |
2800DB3-S |
- |
30-280 |
kgf.m 3-28 |
- |
5 |
kgf.m 0.5 |
- |
467 |
- |
600 |
- |
690 |
19.05 |
- |
1.65 |
- | |
|
- |
- |
DB175F-4AS |
- |
- |
0-175 |
- |
- |
2 |
- |
130 15/64 |
- |
16 1/8 |
- |
19 11/16 |
- |
1/2 |
- |
1 7/32 |
|
DB420N-S |
4200DB2-S |
DB250F-6AS |
40-420 |
4-42 |
0-250 |
5 |
0.5 |
5 |
525 |
126 63/64 |
800 |
23 5/8 |
890 |
27 5/32 |
19.05 |
3/4 |
2.5 |
3 41/64 |
|
DBE560N-S |
5600DBE2-S |
DB350F-6AS |
50-560 |
5-56 |
0-350 |
5 |
560 |
133 11/32 |
1000 |
31 1/2 |
1100 |
35 1/32 |
4 |
5 17/32 | ||||
|
DBE700N-S |
7000DBE2-S |
DB500F-6AS |
70-700 |
7-70 |
0-500 |
10 |
1 |
10 |
609 |
132 1/2 |
1150 |
45 9/32 |
1260 |
49 5/8 |
5.5 |
12 1/8 | ||
|
DBE850N-S |
8500DBE2-S |
- |
100-850 |
10-85 |
- |
- |
680 |
- |
1250 |
- |
1360 |
25.4 |
6.1 |
- | ||||
|
DBE1000N-S |
10000DBE2-S |
DB800F-8AS |
100-1000 |
10-100 |
0-800 |
10 |
741 |
180 19/32 |
1350 |
53 5/32 |
1490 |
58 21/32 |
1 |
6.4 |
14 1/8 | |||
|
DBE1400N-S |
14000DBE2-S |
DB1000F-8AS |
200-1400 |
20-140 |
0-1000 |
20 |
2 |
10 |
875 |
190 15/32 |
1600 |
63 |
1740 |
68 1/2 |
8.6 |
18 31/32 | ||
|
DBE2100N-S |
21000DBE2-S |
DB1500F-8AS |
200-2100 |
20-210 |
0-1500 |
20 |
1050 |
228 9/16 |
2000 |
78 3/4 |
2140 |
84 1/4 |
12.8 |
28 7/32 | ||||
|
DBE2800N-S |
28000DBE2-S |
DB2000F-12AS |
300-2800 |
30-280 |
0-2000 |
50 |
5 |
20 |
1250 |
507 15/16 |
2240 |
47 1/4 |
2380 |
50 19/32 |
38.1 |
1 1/2 |
16.8 |
54 1/32 |
|
DBR4500N-S |
45000DBR-S |
DB3000F-12AS |
500-4500 |
50-450 |
0-3000 |
50 |
3750 |
609 33/64 |
1200 |
59 1/16 |
1285 |
62 13/32 |
24.5 |
56 7/32 | ||||
|
DBR6000N-S |
60000DBR-S |
- |
600-6000 |
60-600 |
- |
- |
4000 |
- |
1500 |
- |
1585 |
- |
44.45 |
- |
25.5 |
- | ||
