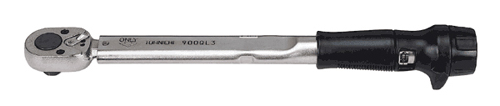

| 產品名稱：日本東日QL系列扭力扳手扭矩扳手 |
| 產品型號：日本東日QL系列 |
| 產品產地：日本東日 |
 |
|
Model |
Torque Range |
HAND FORCE AT MAX. TORQUE |
EFFECTIVE LENGTH |
OVERALL LENGTH |
SQUARE DRIVE |
WEIGHT APPROX. | ||||||||||||
|
S.I. |
METRIC |
AMERICAN |
MIN.~MAX. |
GRADUATION | ||||||||||||||
|
S.I. |
METRIC |
AMERICAN |
S.I. |
METRIC |
AMERICAN |
N |
lb |
mm |
in. |
mm |
in. |
mm |
in. |
kg |
lb. | |||
|
QL1.5N |
15QL |
15QL-A |
N.m 0.5~1.5 |
kgf.cm 5~15 |
in.lbs 4~10 |
N.m 0.025 |
kgf.cm 0.25 |
in.lbs 0.2 |
12 |
2 31/32 |
125 |
5 1/16 |
175 |
6 57/64 |
6.35 |
1/4 |
0.12 |
9/32 |
|
QL3N |
30QL |
30QL-A |
1~3 |
10~30 |
10~30 |
0.05 |
0.5 |
0.5 |
24 |
5 59/64 | ||||||||
|
QL6N |
60QL |
QL50I-2A |
2~6 |
20~60 |
20~50 |
0.1 |
1 |
1 |
48 |
9 15/16 | ||||||||
|
QL12N |
120QL |
QL100I-2A |
4~12 |
40~120 |
40~100 |
0.2 |
2 |
2 |
92 |
19 33/64 |
130 |
5 1/8 |
185 |
7 19/64 |
0.18 |
13/32 | ||
|
- |
- |
QL200I-2A |
- |
- |
50~200 |
- |
- |
2.5 |
- |
32 21/32 |
- |
6 1/8 |
- |
8 43/64 |
- |
- |
9/16 | |
|
QL25N |
225QL3 |
QL200I-3A |
5~25 |
50~250 |
50~200 |
0.25 |
2.5 |
161 |
155 |
220 |
9.53 |
3/8 |
0.25 | |||||
|
QL50N |
450QL3 |
QL400I-3A |
10~50 |
100~500 |
100~400 |
0.5 |
5 |
5 |
278 |
56 25/64 |
180 |
7 3/32 |
260 |
10 1/4 |
0.45 |
1 | ||
|
- |
- |
QL750I-3A |
- |
- |
150~750 |
- |
- |
10 |
- |
73 11/64 |
- |
10 1/4 |
- |
13 25/64 |
- |
- |
1 1/2 | |
|
QL75F-3A |
ft.lbs 15~75 |
ft.lbs 1 |
87 13/16 | |||||||||||||||
|
QL100N |
900QL3 |
- |
20~100 |
200~1000 |
- |
1 |
10 |
- |
385 |
- |
260 |
- |
340 |
- |
12.7 |
1/2 |
0.69 |
- |
|
QL140N |
1400QL3 |
QL100F-4A |
30~140 |
300~1400 |
30~100 |
1 |
10 |
1 |
440 |
95 49/64 |
318 |
12 17/32 |
400 |
15 3/4 |
0.79 |
1 3/4 | ||
|
QL200N |
1800QL3 |
QL150F-4A |
40~200 |
400~2000 |
30~150 |
2 |
20 |
2 |
500 |
114 19/64 |
400 |
15 3/4 |
495 |
19 1/2 |
1.4 |
3 1/8 | ||
|
QL280N |
2800QL3 |
- |
40~280 |
kgf.m 4~28 |
- |
kgf.m 0.2 |
- |
467 |
- |
600 |
- |
695 |
- |
19.05 |
3/4 |
1.9 |
- | |
|
QL420N |
4200QL2 |
QL300F-6A |
60~420 |
6~42 |
60~300 |
3 |
467 |
101 19/32 |
900 |
35 7/16 |
975 |
38 3/8 |
3.2 |
7 1/16 | ||||
|
QLE550N |
5500QLE |
QL400F-6A |
100~550 |
10~55 |
100~400 |
5 |
0.5 |
5 |
500 |
111 17/32 |
1100 |
43 5/16 |
1190 |
47 1/8 |
5.1 |
11 15/32 | ||
|
QLE750N |
7500QLE |
QL600F-6A |
100~750 |
10~75 |
100~600 |
600 |
147 3/8 |
1250 |
49 7/32 |
1365 |
54 |
7.1 |
15 11/16 | |||||
|
QLE1000N |
10000QLE |
QL700F-8A |
100~1000 |
10~100 |
100~700 |
714 |
153 11/32 |
1400 |
55 1/8 |
1535 |
60 1/2 |
25.4 |
1 |
9.5 |
20 15/16 | |||
|
QLE1400N |
14000QLE |
QL1000F-8A |
200~1400 |
20~140 |
150~1000 |
10 |
1 |
10 |
848 |
185 27/32 |
1650 |
64 31/32 |
1794 |
71 |
13.1 |
27 7/8 | ||
|
QLE2100N |
21000QLE |
QL1500F-8A |
500~2100 |
50~210 |
600~1500 |
20 |
2 |
20 |
1200 |
262 27/32 |
1750 |
68 29/32 |
1950 |
76 3/4 |
20 |
44 1/8 | ||
